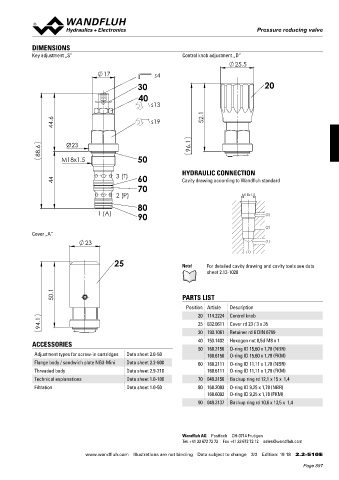

Pressure reducing valve
Pressure reducing valve

DIMENSIONS
Key adjustment „S” Control knob adjustment „D”
25.5
17 s4

30 20
40
s13

44.6 s19 52.1

88.6 Ø23 96.1

M18x1.5 50

44 3 (T) 60 HYDRAULIC CONNECTION
Cavity drawing according to Wandfluh standard
70
2 (P) M18x1.5
80
1 (A) 90 (3)

(2)
Cover „A”
23 (1)

(1)
25 Note! For detailed cavity drawing and cavity tools see data

sheet 2.13-1020

50.1 PARTS LIST

Position Article Description
20 114.2224 Control knob
94.1 25 032.0611 Cover rd 23 / 3 x 35

30 193.1061 Retainer rd 6 DIN 6799
40 153.1402
Hexagon nut 0,5d M8 x 1
ACCESSORIES
50 160.2156 O-ring ID 15,60 x 1,78 (NBR)
Adjustment types for screw-in cartridges Data sheet 2.0-50 160.6156 O-ring ID 15,60 x 1,78 (FKM)
Flange body / sandwich plate NG3-Mini Data sheet 2.2-600 60 160.2111 O-ring ID 11,11 x 1,78 (NBR)
Threaded body Data sheet 2.9-210 160.6111 O-ring ID 11,11 x 1,78 (FKM)
Technical explanations Data sheet 1.0-100 70 049.3156 Backup ring rd 12,1 x 15 x 1,4
Filtration Data sheet 1.0-50 80 160.2093 O-ring ID 9,25 x 1,78 (NBR)
160.6092 O-ring ID 9,25 x 1,78 (FKM)
90 049.3137 Backup ring rd 10,6 x 13,5 x 1,4

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com

www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 19 18 2.2-510 E
