Pressure reducing valve
Pressure reducing valve

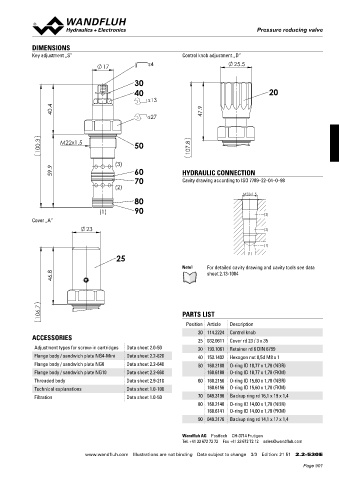

DIMENSIONS
Key adjustment „S” Control knob adjustment „D”

17 s4 25.5

30
40 20
s13
40.4 s27 47.9

100.3 M22x1.5 50 107.8

(3)
59.9 60 HYDRAULIC CONNECTION

(2) 70 Cavity drawing according to ISO 7789–22–04–0–98

M22x1.5
80

(1) 90 (3)
Cover „A”
23 (2)

(1)
25 (1)

Note! For detailed cavity drawing and cavity tools see data
46.8 sheet 2.13-1004

106.7 PARTS LIST

Position Article Description
20 114.2224 Control knob
ACCESSORIES
25 032.0611 Cover rd 23 / 3 x 35
Adjustment types for screw-in cartridges Data sheet 2.0-50 30 193.1061 Retainer rd 6 DIN 6799
Flange body / sandwich plate NG4-Mini Data sheet 2.2-620 40 153.1402 Hexagon nut 0,5d M8 x 1
Flange body / sandwich plate NG6 Data sheet 2.2-640 50 160.2188 O-ring ID 18,77 x 1,78 (NBR)
Flange body / sandwich plate NG10 Data sheet 2.2-660 160.6188 O-ring ID 18,77 x 1,78 (FKM)
Threaded body Data sheet 2.9-210 60 160.2156 O-ring ID 15,60 x 1,78 (NBR)
Technical explanations Data sheet 1.0-100 160.6156 O-ring ID 15,60 x 1,78 (FKM)
Filtration Data sheet 1.0-50 70 049.3196 Backup ring rd 16,1 x 19 x 1,4
80 160.2140 O-ring ID 14,00 x 1,78 (NBR)
160.6141 O-ring ID 14,00 x 1,78 (FKM)
90 049.3176 Backup ring rd 14,1 x 17 x 1,4
