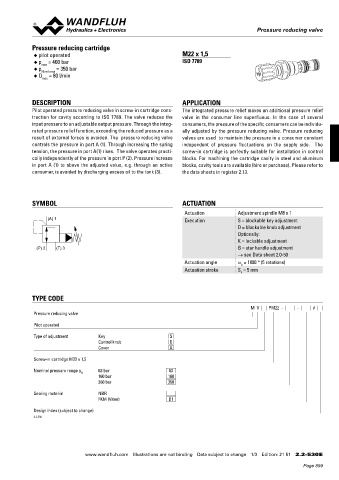

Pressure reducing valve
Pressure reducing valve

Pressure reducing cartridge
◆ pilot operated M22 x 1,5
◆ p = 400 bar ISO 7789
max
◆ p N red max = 350 bar
◆ Q = 80 l/min
max

DESCRIPTION APPLICATION
Pilot operated pressure reducing valve in screw-in cartridge cons- The integrated pressure relief makes an additional pressure relief
truction for cavity according to ISO 7789. The valve reduces the valve in the consumer line superfluous. In the case of several
input pressure to an adjustable output pressure. Through the integ- consumers, the pressure of the specific consumers can be individu-
rated pressure relief function, exceeding the reduced pressure as a ally adjusted by the pressure reducing valve. Pressure reducing
result of external forces is avoided. The pressure reducing valve valves are used to maintain the pressure in a consumer constant
controls the pressure in port A (1). Through increasing the spring independent of pressure fluctuations on the supply side. The
tension, the pressure in port A(1) rises. The valve operates practi- screw-in cartridge is perfectly suitable for installation in control
cally independently of the pressure in port P (2). Pressure increase blocks. For machining the cartridge cavity in steel and aluminum
in port A (1) to above the adjusted value, e.g. through an active blocks, cavity tools are available (hire or purchase). Please refer to

consumer, is avoided by discharging excess oil to the tank (3). the data sheets in register 2.13.

SYMBOL ACTUATION
Actuation Adjustment spindle M8 x 1
(A) 1 Execution S = blockable key adjustment
D = blockable knob adjustment
Optionally:
K = lockable adjustment
(P) 2 (T) 3 G = star handle adjustment
→ see Data sheet 2.0-50
Actuation angle a = 1800 ° (5 rotations)
b
Actuation stroke S = 5 mm
b

TYPE CODE

M V PM22 - - #
Pressure reducing valve

Pilot operated
Type of adjustment Key S
Control knob D
Cover A
Screw-in cartridge M22 x 1,5

Nominal pressure range p N 63 bar 63
160 bar 160
350 bar 350

Sealing material NBR
FKM (Viton) D1
Design index (subject to change)
2.2-530

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 21 51 2.2-530 E
