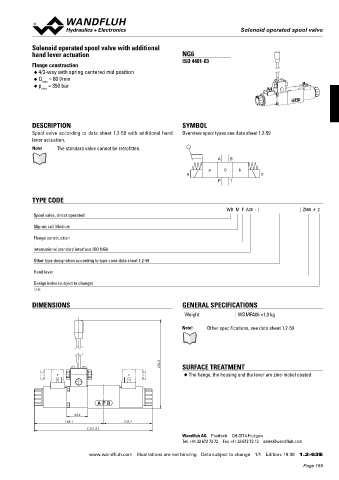

Solenoid operated spool valve
Solenoid operated spool valve
Solenoid operated spool valve with additional
hand lever actuation NG6
ISO 4401-03
Flange construction
◆ 4/3-way with spring centered mid position
◆ Q = 80 l/min
max
◆ p = 350 bar
max
DESCRIPTION SYMBOL
Spool valve according to data sheet 1.2-59 with additional hand Overview spool types see data sheet 1.2-59
lever actuation.
Note! The standard valve cannot be retrofitted.
A B
a 0 b
a b
P T
TYPE CODE
WD M F A06 - Z568 # 2
Spool valve, direct operated
Slip-on coil Medium
Flange construction
International standard interface ISO NG6
Other type designation according to type code data sheet 1.2-59
Hand lever
Design index (subject to change)
1.2-63
DIMENSIONS GENERAL SPECIFICATIONS
Weight WDMFA06 +1,0 kg
Note! Other specifications, see data sheet 1.2-59
256.5 SURFACE TREATMENT
A B ◆ The flange, the housing and the lever are zinc-nickel coated
44.4
148.1 103.7
251.8
Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com
www.wandfluh.com Illustrations are not binding Data subject to change 1/1 Edition: 19 38 1.2-63 E
