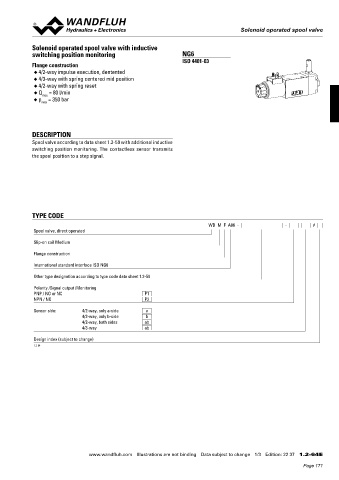

Page 171 - Softbound_Edition_19_en

Solenoid operated spool valve
Solenoid operated spool valve

Solenoid operated spool valve with inductive
switching position monitoring NG6
ISO 4401-03
Flange construction
◆ 4/2-way impulse execution, dentented
◆ 4/3-way with spring centered mid position
◆ 4/2-way with spring reset
◆ Q = 80 l/min
max
◆ p = 350 bar
max

DESCRIPTION
Spool valve according to data sheet 1.2-59 with additional inductive
switching position monitoring. The contactless sensor transmits
the spool position to a step signal.

TYPE CODE

WD M F A06 - - #
Spool valve, direct operated
Slip-on coil Medium

Flange construction

International standard interface ISO NG6
Other type designation according to type code data sheet 1.2-59
Polarity /Signal output /Monitoring
PNP / NO or NC P1
NPN / NO P2

Sensor side: 4/2-way, only a-side a
4/2-way, only b-side b
4/2-way, both sides ab
4/3-way ab

Design index (subject to change)
1.2-64

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 22 37 1.2-64 E
