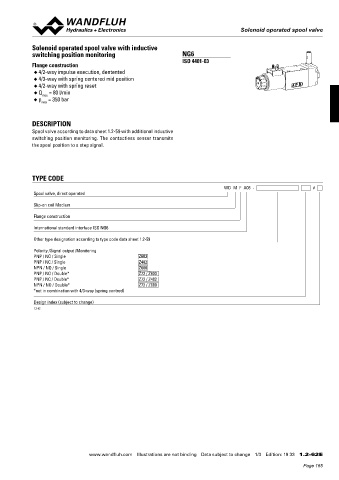

Solenoid operated spool valve
Solenoid operated spool valve

Solenoid operated spool valve with inductive
switching position monitoring NG6
ISO 4401-03
Flange construction
◆ 4/2-way impulse execution, dentented
◆ 4/3-way with spring centered mid position
◆ 4/2-way with spring reset
◆ Q = 80 l/min
max
◆ p = 350 bar
max

DESCRIPTION
Spool valve according to data sheet 1.2-59 with additional inductive
switching position monitoring. The contactless sensor transmits

the spool position to a step signal.

TYPE CODE
WD M F A06 - #
Spool valve, direct operated
Slip-on coil Medium

Flange construction
International standard interface ISO NG6

Other type designation according to type code data sheet 1.2-59
Polarity /Signal output /Monitoring
PNP / NO / Single Z603
PNP / NC / Single Z482
NPN / NO / Single Z680
PNP / NO / Double* Z72 / Z603
PNP / NC / Double* Z72 / Z482
NPN / NO / Double* Z72 / Z680
*not in combination with 4/3-way (spring centred)

Design index (subject to change)
1.2-62

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 19 33 1.2-62 E
