Solenoid operated spool valve
Solenoid operated spool valve

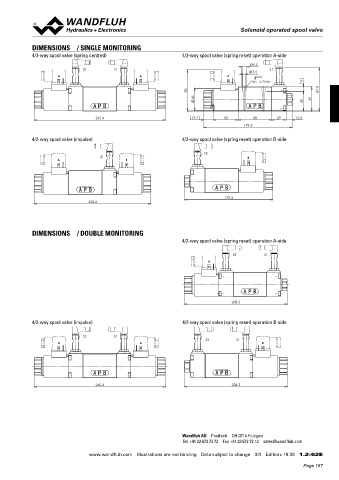

DIMENSIONS / SINGLE MONITORING
4/3-way spool valve (spring centred) 4/2-way spool valve (spring reset) operation A-side
Ø9.5
S2 S1 S1
5.5
A B A
MD= 5.2Nm 9
83 87.8
45 49
40
265.4 19.7 50 68 29 12.6
179.3
4/2-way spool valve (impulse) 4/2-way spool valve (spring reset) operation B-side
S2
S1 B
A B
179.3
236.4
DIMENSIONS / DOUBLE MONITORING
4/2-way spool valve (spring reset) operation A-side
S2 S1
A
208.3
4/2-way spool valve (impulse) 4/2-way spool valve (spring reset) operation B-side
S2 S1
S2 S1
A B B
265.4 208.3
