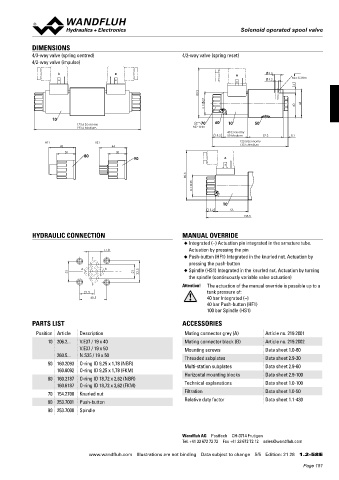

Solenoid operated spool valve
                                                                                     Solenoid operated spool valve


            DIMENSIONS
            4/3-way valve (spring centred)                       4/2-way valve (spring reset)
            4/2-way valve (impulse)

                     A                   B                                          A            9.5
                                                                                                 5.2    MD= 5.2Nm
                                                                                                          6
                                                                        80.5
                                                                         37
                                                                          V =                             40    46

                   10
                            173.6 Economy                               70   60  10        50
                            193.6 Medium                             MD=5Nm
                                                                                 40 Economy
                                                                             18.2   50 Medium     57.2    8.1
                 HF1              HS1                                                123.5 Economy
                                                                                     133.5 Medium
                       43                44
                        30                30
                               80
                                                90                              A
                                                                   80.3
                                                                    35
                                                                     N =

                                                                               10
                                                                           15.2    53
                                                                                       133.5


            HYDRAULIC CONNECTION                                 MANUAL OVERRIDE
                                                                  ◆  Integrated (–) Actuation pin integrated in the armature tube.
                                      17.8                         Actuation by pressing the pin
                                 T                                ◆  Push-button (HF1) Integrated in the knurled nut. Actuation by
                                                                   pressing the push-button
                              A       B                             Spindle (HS1) Integrated in the knurled nut. Actuation by turning
                          31                     21    32.5       ◆
                                                                   the spindle (continuously variable valve actuation)
                                 P                               Attention!  The actuation of the manual override is possible up to a
                               21.5                                       tank pressure of:
                                 40.5                                     40 bar Integrated (–)
                                                                          40 bar Push-button (HF1)
                                                                          100 bar Spindle (HS1)

            PARTS LIST                                           ACCESSORIES
              Position Article  Description                       Mating connector grey (A)   Article no. 219.2001
                  10 206.2...  V.E37 / 19 x 40                    Mating connector black (B)  Article no. 219.2002
                             V.E37 / 19 x 50                      Mounting screws             Data sheet 1.0-60
                     260.5...  N.S35 / 19 x 50
                                                                  Threaded subplates          Data sheet 2.9-30
                  50 160.2093  O-ring ID 9,25 x 1,78 (NBR)        Multi-station subplates     Data sheet 2.9-60
                     160.6092  O-ring ID 9,25 x 1,78 (FKM)
                  60 160.2187  O-ring ID 18,72 x 2,62 (NBR)       Horizontal mounting blocks  Data sheet 2.9-100
                     160.6187  O-ring ID 18,72 x 2,62 (FKM)       Technical explanations      Data sheet 1.0-100
                                                                  Filtration                  Data sheet 1.0-50
                  70 154.2700  Knurled nut
                  80 253.7001  Push-button                        Relative duty factor        Data sheet 1.1-430
                  90 253.7000  Spindle




                                                                 Wandfluh AG  Postfach  CH-3714 Frutigen
                                                                 Tel. +41 33 672 72 72  Fax +41 33 672 72 12  sales@wandfluh.com

                                www.wandfluh.com  Illustrations are not binding  Data subject to change  5/5  Edition: 21 28  1.2-58 E
