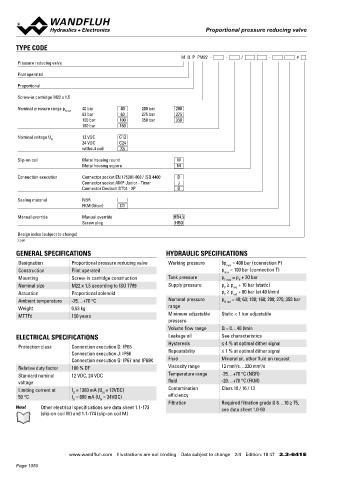

Proportional pressure reducing valve
                                                                         Proportional pressure reducing valve                                                                                          Proportional pressure reducing valve


       TYPE CODE                                                                                                                   PERFORMANCE SPECIFICATIONS
                                                                                                                                                    2
                                                                 M  Q  P  PM22  -     -     /        -        #                    Oil viscosity u = 30 mm /s
       Pressure reducing valve                                                                                                      p  = f (Q)  Pressure volume flow characteristics     p  = f (Q)  Pressure volume flow characteristics
                                                                                                                                                                                          red
                                                                                                                                     red
       Pilot operated                                                                                                                         Maximal adjustable pressure                          Minimal adjustable pressure
                                                                                                                                                                                                   *Consumer resistance depending on the system
       Proportional                                                                                                                     p [bar]                                             p [bar]
                                                                                                                                     400  K1011                                            80  K0809
       Screw-in cartridge M22 x 1,5
                                                                                                                                                                            P N red = 350 bar
                                                                                                                                     300                                                   60
       Nominal pressure range p N red    40 bar   40   200 bar   200                                                                                                        P N red = 275 bar
                              63 bar       63      275 bar     275                                                                   200                                    P N red = 200 bar  40
                              100 bar      100     350 bar     350                                                                                                          P N red = 160 bar
                                                                                                                                     100
                              160 bar      160                                                                                                                              P N red = 100 bar  20
                                                                                                                                                                            P N red = 63 bar
                                                                                                                                       0                                    P N red = 40 bar  0                        ∗
       Nominal voltage U      12 VDC       G12
                   N                                                                                                                     40  30  20  10   0   10  20  30  40                 40  30  20  10   0   10  20  30   40
                              24 VDC       G24                                                                                                 A     T  Q [l/min]  P   A                         A     T  Q [l/min]  P   A
                              without coil   X5

       Slip-on coil           Metal housing round              W
                              Metal housing square             M                                                                    p  = f (n)  Pressure adjustment characteristics      p  = f (n)  Pressure adjustment characteristics
                                                                                                                                                                                          red
                                                                                                                                     red
                                                                                                                                              Measured at Q = 0 l/min (static)                     Measured at Q = 0 l/min (static)
       Connection execution   Connector socket EN 175301-803 / ISO 4400   D                                                             p [bar]                                              p [bar]
                              Connector socket AMP Junior - Timer   J                                                                100  K1013                             P N red = 100 bar  350  K1012                        P N red = 350 bar
                              Connector Deutsch DT04 - 2P      G
                                                                                                                                      80                                                  300                                    P N red = 275 bar
       Sealing material       NBR                                                                                                     60                                    P N red = 63 bar  250                                P N red = 200 bar
                                                                                                                                                                                          200
                              FKM (Viton)   D1
                                                                                                                                      40                                    P N red = 40 bar  150                                P N red = 160 bar
       Manual override        Manual override                 HB4,5                                                                   20                                                  100
                              Screw plug                       HB0                                                                                                                         50
                                                                                                                                       0    10  20  30  40 50 60 70 80 90  100 l [%]        0    10  20  30  40 50 60 70 80 90  100 l [%]
       Design index (subject to change)                                                                                                  0                                                    0
       2.3-641
                                                                                                                                    Q  = f (p)  Leakage volume flow characteristic
       GENERAL SPECIFICATIONS                              HYDRAULIC SPECIFICATIONS                                                  L        P (2) → T (3) (pressure in P (2) = 350 bar)
       Designation        Proportional pressure reducing valve  Working pressure  §p  = 400 bar (connection P)                          Q [cm /min]
                                                                                                                                            3
                                                                                 max
       Construction       Pilot operated                                       p  = 100 bar (connection T)                           600  K0812_1
                                                                                max
       Mounting           Screw-in cartridge construction   Tank pressure      p T max  = p  + 20 bar
                                                                                     P
       Nominal size       M22 x 1,5 according to ISO 7789   Supply pressure    p  ≥ p  + 10 bar (static)                             450
                                                                                P
                                                                                   red
       Actuation          Proportional solenoid                                p  ≥ p  + 80 bar (at 40 l/min)                        300
                                                                                   red
                                                                                P
       Ambient temperature  -25…+70 °C                      Nominal pressure   p N red  = 40; 63; 100; 160; 200; 275; 350 bar        150
       Weight             0,53 kg                           range
       MTTFd              150 years                         Minimum adjustable   Static < 1 bar adjustable                             0  0  50   100  150  200  250  300  350 p [bar]
                                                            pressure                                                                       P N red = 40/63/100/160 bar
                                                                                                                                           P N red = 200/275/350 bar
                                                            Volume flow range  Q = 0…40 l/min
       ELECTRICAL SPECIFICATIONS                            Leakage oil        See characteristics
                                                            Hysteresis         ≤ 4 % at optimal dither signal
       Protection class   Connection execution D: IP65                                                                             ACCESSORIES                                          MANUAL OVERRIDE
                          Connection execution J: IP66      Repeatability      ≤ 1 % at optimal dither signal                                                                           HB4,5
                          Connection execution G: IP67 and IP69K  Fluid        Mineral oil, other fluid on request                  Proportional amplifier           Register 1.13      Optionally: Screw plug (HB0), no actuation possible
                                                                                            2
                                                                                   2
       Relative duty factor  100 % DF                       Viscosity range    12 mm /s…320 mm /s                                   Electric plug B (black)          Article no. 219.2002
       Standard nominal   12 VDC, 24 VDC                    Temperature range   -25…+70 °C (NBR)                                    Flange body / sandwich plate NG4-Mini  Data sheet 2.3-820
       voltage                                              fluid              -20…+70 °C (FKM)                                     Flange body / sandwich plate NG6  Data sheet 2.3-840  SEALING MATERIAL
       Limiting current at  I  = 1360 mA (U  = 12VDC)       Contamination      Class 18 / 16 / 13                                   Flange body / sandwich plate NG10  Data sheet 2.3-860  NBR or FKM (Viton) as standard, choice in the type code
                                     N
                           G
       50 °C              I  = 680 mA (U  = 24VDC)          efficiency
                           G        N                                                                                               Threaded body                    Data sheet 2.9-210
                                                            Filtration         Required filtration grade ß 6…10 ≥ 75,
       Note!   Other electrical specifications see data sheet 1.1-173          see data sheet 1.0-50                                Technical explanations           Data sheet 1.0-100
               (slip-on coil W) and 1.1-174 (slip-on coil M)                                                                        Hydraulic fluids                 Data sheet 1.0-50  SURFACE TREATMENT
                                                                                                                                                                                         ◆  The cartridge body, the slip-on coil and the armature tube are
                                                                                                                                    Filtration                       Data sheet 1.0-50    zinc-nickel coated


                         www.wandfluh.com  Illustrations are not binding  Data subject to change  2/4  Edition: 18 47  2.3-641 E                      www.wandfluh.com  Illustrations are not binding  Data subject to change  3/4  Edition: 18 47  2.3-641 E
