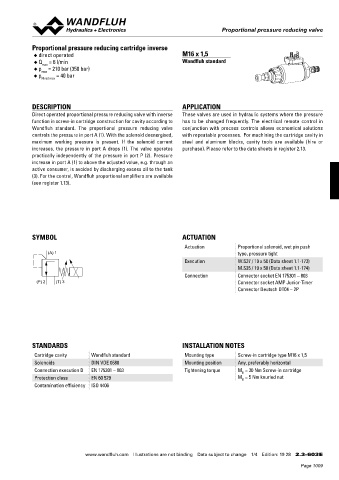

Page 1009 - Softbound_Edition_19_en

Proportional pressure reducing valve
Proportional pressure reducing valve

Proportional pressure reducing cartridge inverse
◆ direct operated M16 x 1,5
◆ Q = 6 l/min Wandfluh standard
max
◆ p = 210 bar (350 bar)
max
◆ p = 40 bar
N red max

DESCRIPTION APPLICATION
Direct operated proportional pressure reducing valve with inverse These valves are used in hydraulic systems where the pressure
function in screw-in cartridge construction for cavity according to has to be changed frequently. The electrical remote control in
Wandfluh standard. The proportional pressure reducing valve conjunction with process controls allows economical solutions
controls the pressure in port A (1). With the solenoid deenergised, with repeatable processes. For machining the cartridge cavity in

maximum working pressure is present. If the solenoid current steel and aluminum blocks, cavity tools are available (hire or
increases, the pressure in port A drops (1). The valve operates purchase). Please refer to the data sheets in register 2.13.
practically independently of the pressure in port P (2). Pressure
increase in port A (1) to above the adjusted value, e.g. through an
active consumer, is avoided by discharging excess oil to the tank
(3). For the control, Wandfluh proportional amplifiers are available
(see register 1.13).

SYMBOL ACTUATION
Actuation Proportional solenoid, wet pin push
(A) 1 type, pressure tight
Execution W.S37 / 19 x 50 (Data sheet 1.1-173)
M.S35 / 19 x 50 (Data sheet 1.1-174)
Connection Connector socket EN 175301 – 803
(P) 2 (T) 3 Connector socket AMP Junior-Timer
Connector Deutsch DT04 – 2P

STANDARDS INSTALLATION NOTES
Cartridge cavity Wandfluh standard Mounting type Screw-in cartridge type M16 x 1,5
Solenoids DIN VDE 0580 Mounting position Any, preferably horizontal
Connection execution D EN 175301 – 803 Tightening torque M = 30 Nm Screw-in cartridge
D
Protection class EN 60 529 M = 5 Nm knurled nut
D
Contamination efficiency ISO 4406

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 19 28 2.3-603 E
