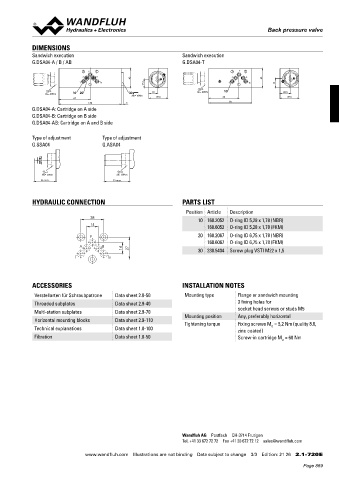

Page 869 - Softbound_Edition_19_en

Back pressure valve
Back pressure valve

DIMENSIONS
Sandwich execution Sandwich execution
G.DSA04-A / B / AB G.DSA04-T
P P
A B A B
40 40
17.5 19
T To T To
MD=60Nm 10 20 30 MD= 18Nm 18 MD=60Nm 10 22.5
65 39.5 63 39.5
130 5 90
G.DSA04-A: Cartridge on A side
G.DSA04-B: Cartridge on B side
G.DSA04-AB: Cartridge on A and B side

Type of adjustment Type of adjustment
G.SSA04 G.ASA04

MD= 60Nm MD=60Nm
46 max. 53 max.

HYDRAULIC CONNECTION PARTS LIST
Position Article Description
28 10 160.2052 O-ring ID 5,28 x 1,78 (NBR)
14
160.6052 O-ring ID 5,28 x 1,78 (FKM)
P 20 160.2067 O-ring ID 6,75 x 1,78 (NBR)
160.6067 O-ring ID 6,75 x 1,78 (FKM)
A B
14 27 30 238.5404 Screw plug VSTI M22 x 1,5
T T0

ACCESSORIES INSTALLATION NOTES
Verstellarten für Schraubpatrone Data sheet 2.0-50 Mounting type Flange or sandwich mounting
Threaded subplates Data sheet 2.9-40 3 fixing holes for
socket head screws or studs M5
Multi-station subplates Data sheet 2.9-70
Mounting position Any, preferably horizontal
Horizontal mounting blocks Data sheet 2.9-110 Tightening torque Fixing screws M = 5,2 Nm (quality 8.8,
Technical explanations Data sheet 1.0-100 zinc coated) D
Filtration Data sheet 1.0-50 Screw-in cartridge M = 60 Nm
D

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com

www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 21 26 2.1-720 E
