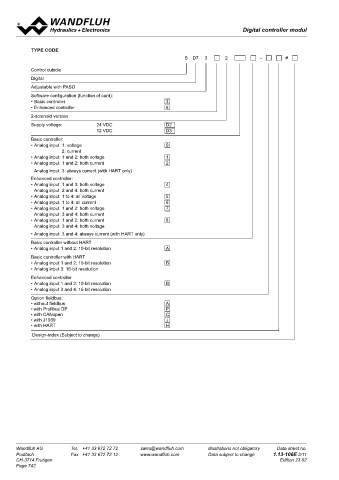

Digital controller module SD7
Digital controller modul

TYPE CODE
S D7 3 2 - #

Control cubicle
Digital
Adjustable with PASO
Software configuration (function of card):
• Basic controller 3
• Enhanced controller 6
2-solenoid version
Supply voltage: 24 VDC D2
12 VDC D3
Basic controller:
• Analog input 1: voltage 0
2: current
• Analog input 1 and 2: both voltage 1
• Analog input 1 and 2: both current 2
Analog input 3: always current (with HART only)
Enhanced controller:
• Analog input 1 and 3: both voltage 4
Analog input 2 and 4: both current
• Analog input 1 to 4: all voltage 5
• Analog input 1 to 4: all current 6
• Analog input 1 and 2: both voltage 7
Analog input 3 and 4: both current
• Analog input 1 and 2: both current 8
Analog input 3 and 4: both voltage
• Analog input 3 and 4: always current (with HART only)
Basic controller without HART
• Analog input 1 and 2: 10-bit resolution A
Basic controller with HART
• Analog input 1 and 2: 10-bit resolution B
• Analog input 3: 16-bit resolution
Enhanced controller
• Analog input 1 and 2: 10-bit resolution B
• Analog input 3 and 4: 16-bit resolution
Option fieldbus:
• without fieldbus A
• with Profibus DP P
• with CANopen C
• with J1939 J
• with HART H
Design-index (Subject to change)

Wandfluh AG Tel. +41 33 672 72 72 sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 www.wandfluh.com Data subject to change 1.13-106E 2/11
CH-3714 Frutigen Edition 23 02
