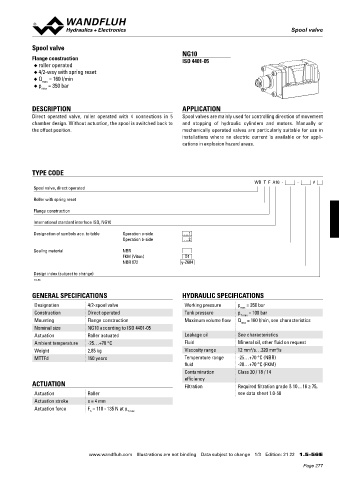

Spool valve
Spool valve

Spool valve
NG10
Flange construction ISO 4401-05
◆ roller operated
◆ 4/2-way with spring reset
◆ Q = 160 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated valve, roller operated with 4 connections in 5 Spool valves are mainly used for controlling direction of movement
chamber design. Without actuation, the spool is switched back to and stopping of hydraulic cylinders and motors. Manually or

the offset position. mechanically operated valves are particularly suitable for use in
installations where no electric current is available or for appli-

cations in explosion hazard areas.

TYPE CODE
WD T F A10 - - #
Spool valve, direct operated
Roller with spring reset

Flange construction
International standard interface ISO, NG10

Designation of symbols acc. to table Operation a-side …1
Operation b-side …2
Sealing material NBR
FKM (Viton) D1
NBR 872 y-Z604
Design index (subject to change)
1.5-56

GENERAL SPECIFICATIONS HYDRAULIC SPECIFICATIONS
Designation 4/2-spool valve Working pressure p = 350 bar
max
Construction Direct operated Tank pressure p = 100 bar
T max
Mounting Flange construction Maximum volume flow Q = 160 l/min, see characteristics
max
Nominal size NG10 according to ISO 4401-05
Actuation Roller actuated Leakage oil See characteristics
Ambient temperature -25…+70 °C Fluid Mineral oil, other fluid on request
2
2
Weight 2,85 kg Viscosity range 12 mm /s…320 mm /s
MTTFd 150 years Temperature range -25…+70 °C (NBR)
fluid -20…+70 °C (FKM)
Contamination Class 20 / 18 / 14
efficiency
ACTUATION Filtration Required filtration grade ß 10…16 ≥ 75,

Actuation Roller see data sheet 1.0-50
Actuation stroke s = 4 mm
Actuation force F = 110 - 135 N at p T max
b

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 21 22 1.5-56 E
