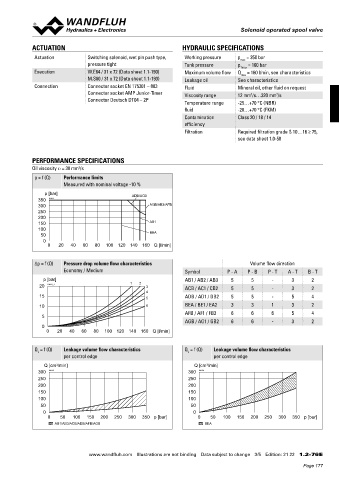

Page 177 - Softbound_Edition_19_en

Solenoid operated spool valve
Solenoid operated spool valve

ACTUATION HYDRAULIC SPECIFICATIONS
Actuation Switching solenoid, wet pin push type, Working pressure p = 350 bar
max
pressure tight Tank pressure p Tmax = 160 bar
Execution W.E64 / 31 x 72 (Data sheet 1.1-190) Maximum volume flow Q = 160 l/min, see characteristics
max
M.S60 / 31 x 72 (Data sheet 1.1-193) Leakage oil See characteristics
Connection Connector socket EN 175301 – 803 Fluid Mineral oil, other fluid on request
Connector socket AMP Junior-Timer Viscosity range 12 mm /s…320 mm /s
2
2
Connector Deutsch DT04 – 2P
Temperature range -25…+70 °C (NBR)
fluid -20…+70 °C (FKM)
Contamination Class 20 / 18 / 14
efficiency
Filtration Required filtration grade ß 10…16 ≥ 75,
see data sheet 1.0-50

PERFORMANCE SPECIFICATIONS
Oil viscosity u = 30 mm /s
2
p = f (Q) Performance limits
Measured with nominal voltage -10 %
p [bar] ADB/ACB
350 K1021
300 AGB/AB3/AFB
250
200
150 AB1
100
50 BEA
0
0 20 40 60 80 100 120 140 160 Q [l/min]

Δp = f (Q) Pressure drop volume flow characteristics Volume flow direction
Economy / Medium Symbol P - A P - B P - T A - T B - T
p [bar] AB1 / AB2 / AB3 5 5 - 3 2
20 K1022_1 1 2 3 ACB / AC1 / CB2 5 5 - 3 2
4
15 5 ADB / AD1 / DB2 5 5 - 5 4
10 6 BEA / BE1 / EA2 3 3 1 3 2
AFB / AF1 / FB2 6 6 6 5 4
5
AGB / AG1 / GB2 6 6 - 3 2
0
0 20 40 60 80 100 120 140 160 Q [l/min]

Q = f (Q) Leakage volume flow characteristics Q = f (Q) Leakage volume flow characteristics
L L
per control edge per control edge
Q [cm /min] Q [cm /min]
3
3
300 K4133 300 K4134
250 250
200 200
150 150
100 100
50 50
0 0
0 50 100 150 200 250 300 350 p [bar] 0 50 100 150 200 250 300 350 p [bar]
AB1/AB3/ACB/ADB/AFB/AGB BEA

www.wandfluh.com Illustrations are not binding Data subject to change 3/5 Edition: 21 22 1.2-76 E
