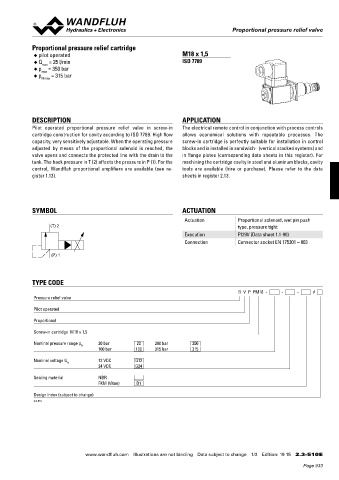

Page 933 - Softbound_Edition_19_en

Proportional pressure relief valve
Proportional pressure relief valve

Proportional pressure relief cartridge
◆ pilot operated M18 x 1,5
◆ Q = 25 l/min ISO 7789
max
◆ p = 350 bar
max
◆ p = 315 bar
N max

DESCRIPTION APPLICATION
Pilot operated proportional pressure relief valve in screw-in The electrical remote control in conjunction with process controls
cartridge construction for cavity according to ISO 7789. High flow allows economical solutions with repeatable processes. The
capacity, very sensitively adjustable. When the operating pressure screw-in cartridge is perfectly suitable for installation in control
adjusted by means of the proportional solenoid is reached, the blocks and is installed in sandwich- (vertical stacked systems) and
valve opens and connects the protected line with the drain to the in flange plates (corresponding data sheets in this register). For
tank. The back pressure in T (2) affects the pressure in P (1). For the machining the cartridge cavity in steel and aluminum blocks, cavity
control, Wandfluh proportional amplifiers are available (see re- tools are available (hire or purchase). Please refer to the data

gister 1.13). sheets in register 2.13.

SYMBOL ACTUATION
Actuation Proportional solenoid, wet pin push
(T) 2 type, pressure tight
Execution PI29V (Data sheet 1.1-90)
Connection Connector socket EN 175301 – 803

(P) 1

TYPE CODE
B V P PM18 - - - #
Pressure relief valve
Pilot operated

Proportional
Screw-in cartridge M18 x 1,5

Nominal pressure range p N 20 bar 20 200 bar 200
100 bar 100 315 bar 315

Nominal voltage U 12 VDC G12
N
24 VDC G24

Sealing material NBR
FKM (Viton) D1

Design index (subject to change)
2.3-510

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 19 15 2.3-510 E
