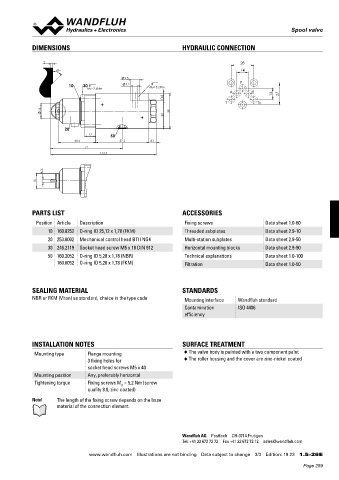

Spool valve
Spool valve

DIMENSIONS HYDRAULIC CONNECTION

2 28
45° 14
9.5
P
10 30 5.2
MD= 2.6Nm MD= 5.2Nm
A B 14 27
8
T T0
16 38
30

20
12 50
40.4 57.2 8.1
77
113.7

4.1
16

PARTS LIST ACCESSORIES
Position Article Description Fixing screws Data sheet 1.0-60
10 160.8252 O-ring ID 25,12 x 1,78 (FKM) Threaded subplates Data sheet 2.9-10
20 253.6002 Mechanical control head BTII NG4 Multi-station subplates Data sheet 2.9-50
30 246.2119 Socket head screw M5 x 18 DIN 912 Horizontal mounting blocks Data sheet 2.9-90
50 160.2052 O-ring ID 5,28 x 1,78 (NBR) Technical explanations Data sheet 1.0-100
160.6052 O-ring ID 5,28 x 1,78 (FKM) Filtration Data sheet 1.0-50

SEALING MATERIAL STANDARDS
NBR or FKM (Viton) as standard, choice in the type code Mounting interface Wandfluh standard
Contamination ISO 4406
efficiency

INSTALLATION NOTES SURFACE TREATMENT

Mounting type Flange mounting ◆ The valve body is painted with a two component paint
3 fixing holes for ◆ The roller housing and the cover are zinc-nickel coated
socket head screws M5 x 40
Mounting position Any, preferably horizontal
Tightening torque Fixing screws M = 5,2 Nm (screw
D
quality 8.8, zinc coated)
Note! The length of the fixing screw depends on the base
material of the connection element.

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com

www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 19 23 1.5-26 E
