Solenoid operated spool valve
Solenoid operated spool valve

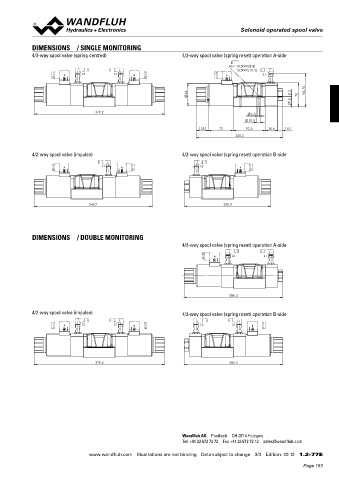

DIMENSIONS / SINGLE MONITORING
4/3-way spool valve (spring centred) 4/2-way spool valve (spring reset) operation A-side
MD= 10.5Nm(8.8)
13.5Nm(10.5)
A S2 S1 B A S1
64 0.5 70 96.75
29.5
379.2 6.5
10.5
35 72 92.6 36.6 14.1
250.3
4/2-way spool valve (impulse) 4/2-way spool valve (spring reset) operation B-side
S1 S2
A B B
343.2 250.3
DIMENSIONS / DOUBLE MONITORING
4/2-way spool valve (spring reset) operation A-side
A S2 S1
286.3
4/2-way spool valve (impulse) 4/2-way spool valve (spring reset) operation B-side
A S2 S1 B S2 S1 B
379.2 286.3
