Solenoid
Solenoids Solenoids

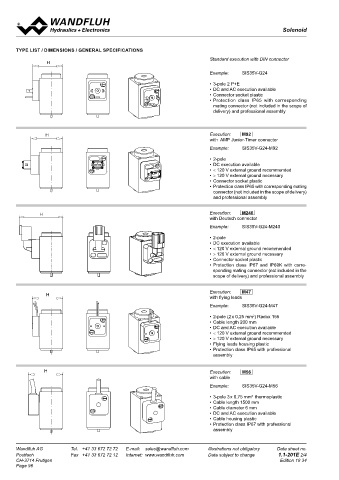

TYPE LIST / DIMENSIONS / GENERAL SPECIFICATIONS TYPE LIST / DIMENSIONS / GENERAL SPECIFICATIONS
Standard execution with DIN connector Execution: M55
H
with flying leads
H H
Example: SIS35V-G24 Example: SIS35V-G24-M55
H • 3-pole 2 P+E • 2-pole (2 x 0,25 mm ) Radox 155
2
• DC and AC execution available • Cable length 500 mm
H • Connector socket plastic • DC execution available
H • Protection class IP65 with corresponding • < 120 V external ground recommended
mating connector (not included in the scope of • > 120 V external ground necessary
delivery) and professional assembly • Protection class IP65 with professional
assembly
H
H H
H Execution: M92 DC-execution Execution: M28
with AMP Junior-Timer connector with calbe
H
H Example: SIS35V-G24-M92 Example: SIS35V-G24-M28
2
H • 2-pole • 3-pole 2 x 1 mm [+E] (acc. to IEC 332)
H • DC execution available H • Cable length 1500 mm
• < 120 V external ground recommended • DC and AC execution available
• > 120 V external ground necessary • Cable housing steel
• Connector socket plastic H • Protection class IP67 with professional
• Protection class IP65 with corresponding mating assembly
H connector (not included in the scope of delivery)
and professional assembly H AC-execution • Rectifier housing plastic, h 10,5 mm
H
H
H Execution: M240 DC-execution
with Deutsch connector H Execution: M34
with bayonet connector
H Example: SIS35V-G24-M240
H Example: SIS35V-G24-M34
• 2-pole H
• DC execution available • 3-pole
• < 120 V external ground recommended H • DC and AC execution available
• > 120 V external ground necessary • Connector housing steel
• Connector socket plastic • Protection class IP67 with corresponding
H • Protection class IP67 and IP69K with corre- mating connector (not included in the scope
H sponding mating connector (not included in the H H of delivery) and professional assembly
scope of delivery) and professional assembly
H H
Neutral conductor Phase AC-execution • Rectifier housing plastic, h 10,5 mm
Execution: M47
H Earth conductor
with flying leads
H Example: SIS35V-G24-M47
H
2
• 2-pole (2 x 0,25 mm ) Radox 155 Execution: M209 with screw terminal
• Cable length 200 mm
H • DC and AC execution available M209a Example: SIS35V-G24-M209a
H • < 120 V external ground recommended
• > 120 V external ground necessary H H • 2-pole
• Flying leads housing plastic • DC version available up to 28 VDC
H • Protection class IP65 with professional • Screw terminal plastic
assembly • Printed circuit board protected with protective
H varnish

H Execution: M56 • Mating connector article no. 219.2802
with cable H
Example: SIS35V-G24-M56
M209b
• 3-pole 3 x 0,75 mm thermoplastic
2
• Cable length 1500 mm
• Cable diameter 6 mm
• DC and AC execution available
• Cable housing plastic
• Protection class IP67 with professional
assembly

Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no. Wandfluh AG Tel. +41 33 672 72 72 E-mail: sales@wandfluh.com Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 1.1-201E 2/4 Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 1.1-201E 3/4
CH-3714 Frutigen Edition 18 34 CH-3714 Frutigen Edition 18 34
