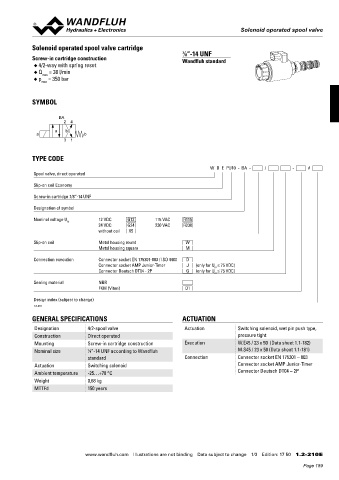

Page 189 - Softbound_Edition_19_en

Solenoid operated spool valve
Solenoid operated spool valve

Solenoid operated spool valve cartridge
7 ⁄8 “-14 UNF
Screw-in cartridge construction Wandfluh standard
◆ 4/2-way with spring reset
◆ Q = 38 l/min
max
◆ p = 350 bar
max

SYMBOL

BA
2 4
a b
a b
3 1

TYPE CODE
W D E PU10 - BA - / - #
Spool valve, direct operated

Slip-on coil Economy
Screw-in cartridge 7/8“-14 UNF

Designation of symbol

Nominal voltage U 12 VDC G12 115 VAC R115
N
24 VDC G24 230 VAC R230
without coil X5
Slip-on coil Metal housing round W
Metal housing square M
Connection execution Connector socket EN 175301-803 / ISO 4400 D
Connector socket AMP Junior-Timer J (only for U ≤ 75 VDC)
N
Connector Deutsch DT04 - 2P G (only for U ≤ 75 VDC)
N
Sealing material NBR
FKM (Viton) D1
Design index (subject to change)
1.2-210
GENERAL SPECIFICATIONS ACTUATION
Designation 4/2-spool valve Actuation Switching solenoid, wet pin push type,
Construction Direct operated pressure tight
Mounting Screw-in cartridge construction Execution W.E45 / 23 x 50 (Data sheet 1.1-182)
Nominal size 7 ⁄8 “-14 UNF according to Wandfluh M.S45 / 23 x 50 (Data sheet 1.1-181)
standard Connection Connector socket EN 175301 – 803
Actuation Switching solenoid Connector socket AMP Junior-Timer
Ambient temperature -25…+70 °C Connector Deutsch DT04 – 2P
Weight 0,68 kg
MTTFd 150 years

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 17 50 1.2-210 E
